4150 Locomotive Fund

February 2012 Restoration Update

Further progress with the bunker assembly, with photos taken by Tony Summerton on 18 February 2012.













4150

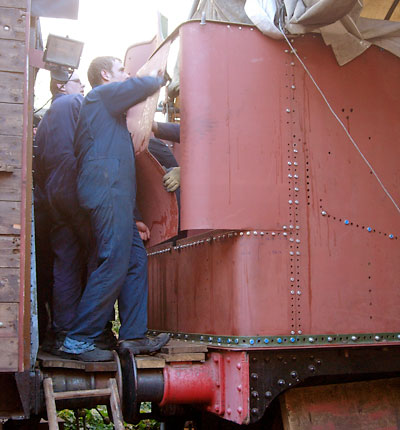

Trial-fitting the large double-radiused rear sheet.

4150

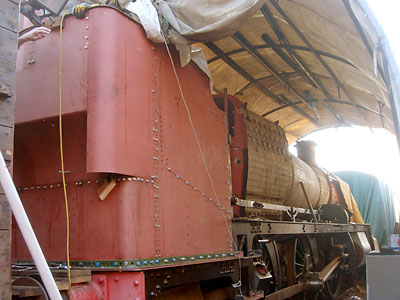

Three-quarter view of the new bunker. The corner sheet is work in progress, not a new type of smoke deflector for working backwards!

4150

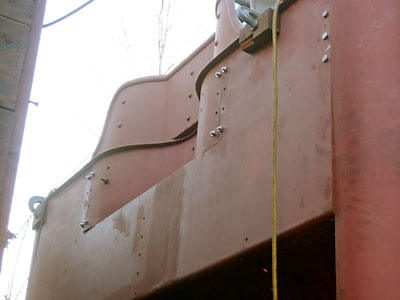

Top of the bunker, showing the recess behind the lamp bracket (yet to be welded on). A lot more drilling is required on the large sheet.

4150

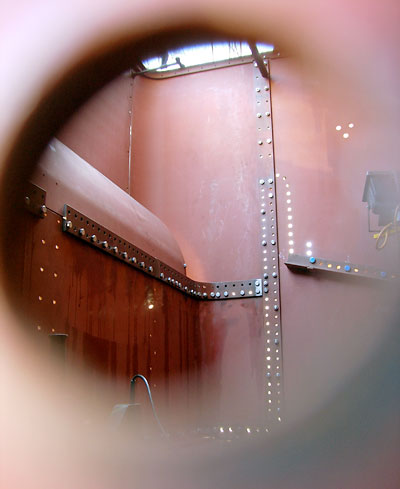

An unusual view of some of the internal structure of the bunker, without baffles or coal plate, taken through a rivet hole!
